| Y70 – 130 | Y70 – 160 | Y70 – 190 | Y70 – 205 | |
| Weight | 1,235 lbs (560 kg) | 1,356 lbs (615 kg) | 1,653 lbs (750 kg) | 1,720 lbs (780 kg) |
| Overall Width | 55” (140 cm) | 66” (167 cm) | 79” (201 cm) | 81” (207 cm) |
| Working Width | 54” (137 cm) | 65” (164 cm) | 78” (198 cm) | 80” (204 cm) |
| Max. Working Depth | 12” (30 cm) | |||
| Power Requirements | 35 HP (26 kW) | 40 HP (29 kW) | 55 HP (40 kW) | 60 HP (44 kW) |
| # of Spades | 6 ➝ 8 × 6” (21 × 16 cm) | 6 ➝ 8 × 7” (21 × 19 cm) | 8 ➝ 8 × 6” (21 × 16 cm) | 8 ➝ 8 × 7” (21 × 19 cm) |
| Type | PTO | |||
| Standard Features | PTO: 540 rpm with 4-speed gearbox, Grease used for lubrication, Rear tailgate with leveling flap, Working depth adjustment by skids, Drive shaft with clutch safety device, Safety devices | |||
| Hitch Category | 3PH CAT II | |||
| Options | Rear rake (replacing tailgate), Pair of front wheels (for mod. 160, 190, 205), Resting feet kit | |||

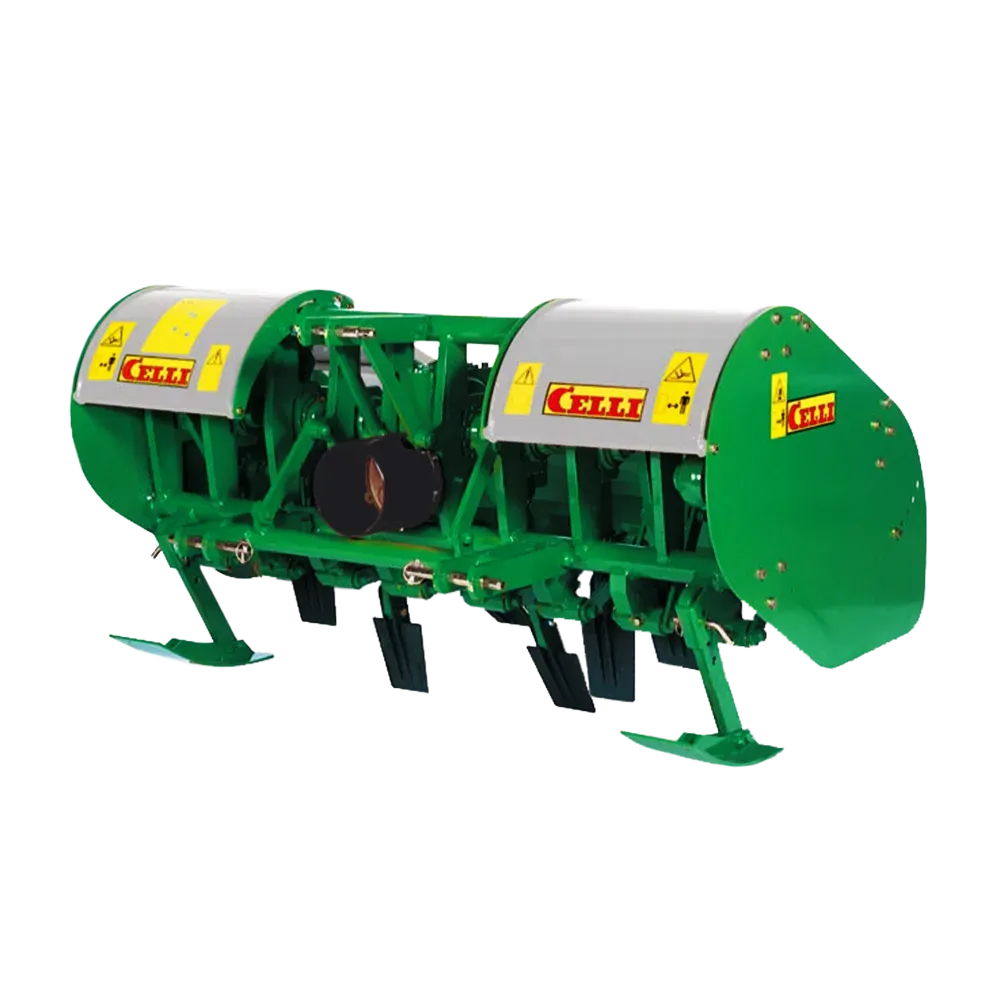

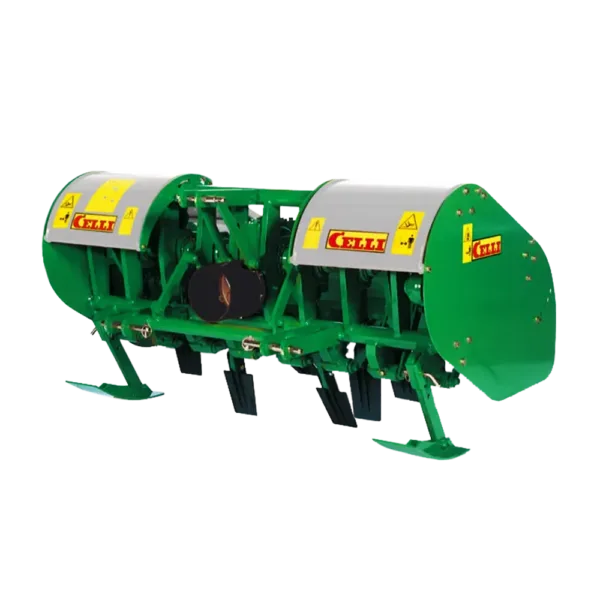

CELLI Spader / Tiller – Y70 130, 160, 190, 205
Introducing the Y70, the ultimate deep soil processing tool for tractors up to 70 HP, perfect for enhancing soil health and productivity. Key features include:
- Deep Soil Processing: Effectively eliminates deep layers of compacted soil, improving overall soil health and structure. This ensures better root penetration and more robust plant growth.
- Improved Water Circulation and Aeration: Significantly boosts deep water circulation and soil aeration, promoting healthier plants and more efficient nutrient absorption throughout the soil.
- Efficient in Wet and Sloping Conditions: Operates seamlessly in wet and sloping terrains without requiring traction, reducing soil erosion by maintaining medium-sized clods that protect the soil structure.
- Reliable and Low Maintenance: The Y70 is built with a simple, robust design that performs well even in tough soil conditions. The rod/crank gear mechanism can be easily lubricated with grease, and disassembly for maintenance and repairs is quick and hassle-free.
- Enhanced Soil Flow: Redesigned sides and safety features improve soil flow during operation, minimizing the risk of clogging and ensuring a smooth, efficient workflow.
- Versatile Application: Ideal for deep soil work, tilling in orchards and vineyards, eliminating soil compaction, and burying abundant crop residue. The Y70 is also designed for safe and easy road transport, making it a reliable choice for a variety of agricultural tasks.
