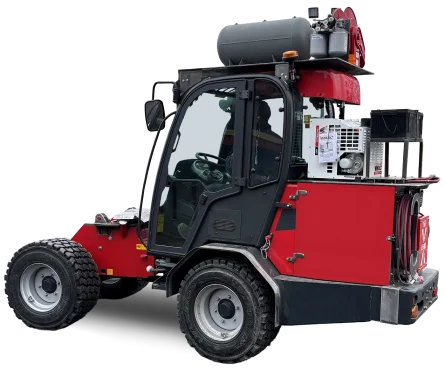

Benco-Schäffer TT4670

BENCO TT4670 Close-cropped

Rugged Performance for Tough Jobs

The Benco-Schäffer TT4670 is a heavy-duty municipal tractor built for year-round operations. Its 66 HP Kubota diesel engine, 4WD, and articulated steering deliver reliable traction across all terrain conditions, while the soundproofed cabin keeps operators comfortable through long shifts. The Schäffer Power Transmission (SPT) and HTF hydrostatic system provide smooth, efficient power transfer with overheating and overspeed protection.

Available with optional equipment including a compressor, booster system, push bar, and more, the TT4670 is a versatile solution for municipalities, airports, and contractors.
Download Specifications
Get a quote
engine
66 HP

Kubota Diesel Engine

payload
3,609 kg / 7,956 lbs

Empty Weight

speed
28 kph / 17 mph

Top Speed

speed
1.52 m / 60"

Width

Articulated Steering Icon
Articulated

Steering

Main Characteristics

Powerful Kubota Engine

Powerful Kubota Engine

66 HP Kubota diesel engine offers strong torque for heavy-duty tasks like lifting or grading with ease.
Soundproofed Operator Cabin

Soundproofed Operator Cabin

A quiet, soundproofed cabin with great visibility and ergonomic controls ensures comfort during long workdays.
4WD for Tough Conditions

4WD for Tough Conditions

4WD provides reliable traction for challenging terrains, from muddy fields to rocky sites.
Schäffer Power Transmission

Schäffer Power Transmission

The SPT system ensures smooth, safe operation with overheating and overspeed protection for any job.
HTF System

HTF (High Traction Force) System

The HTF hydrostatic unit provides thrust and improves efficiency, auto-adjusting speed for max power on hills.
Robust Axles

Robust Axles

Heavy-duty axles with 70 mm (2.8″) shafts provide durability for tough jobs like hauling or grading.

Optional Equipment

Push Bar
  • Width: 1.52 m / 60"
  • Height: 610 mm / 24"
  • Quick Attach Skid Steer
  • Approximate Weight: 680 kg / 1,500 lbs to maximise traction
  • Rounded corner designed to push a bus without deforming
  • Covered with 38 mm / 1.5" in thick UHMW polyethylence panels
  • 2 anchor points
Compressor
  • VMAC model PREDATAIR
  • 40 cfm at 90 psi to supply the bus pneumatic system
  • The tractor vehicle’s pneumatic circuit includes a safety valve set at 125 PSI
  • Include a dryer and a minimum 20 gallons tank with an electrically timed purge valve adjustable delay located under the tank
  • The compressor is hydraulically driven
Booster System
  • REID model FP74
  • Electrical Voltage: 12/24 V
  • Isolated from the vehicle batteries
  • Connected to two auxiliary AGM 8D batteries, minimum 1375cca model 8A8D/T716 securely mounted and housed in a ventilated compartment allowing easy access for maintenance
Smart Charger
  • NOKO G26000
  • Used for the two auxiliary batteries, permanently installed on the vehicle and protected from the element allowing the auxiliary batteries to be charged using an external 120 V power sources.
Fast Idle Switch
  • Fast idle switch for used during compressor operation, two positions, fast idle speed: approximately 1200 RPM. This switch can only be used when the transmission is in neutral and the parking brake is engaged.
Reel
  • Reel for 19 mm / ¾" pneumatic hose
  • Length: 18.29 m / 60'
