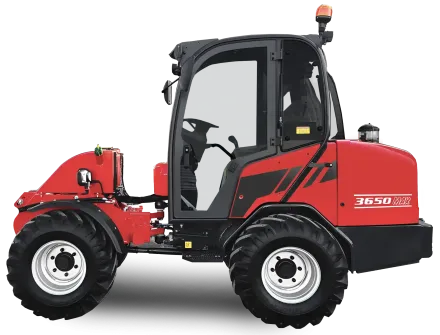

Benco-Schäffer 3650MAX: Compact Power for Any Task

Versatile Performance for Every Season
This tractor offers a soundproofed cabin for a quieter ride, precise hydraulic controls for accurate work, and 4WD for reliable traction on tough terrain. The HTF system ensures strong thrust and efficiency, auto-adjusting speed for max power on hills. It’s a dependable, user-friendly choice for contractors or municipalities needing versatility across demanding jobs.

50 HP
Kubota Diesel Engine

2,700 kg / 5,952 lbs
Empty Weight

28 kph / 17 mph
Top Speed

1,100 mm / 43"
Width

Articulated
Steering
Main Characteristics
Engine
Drive
Dimensions
Weights
Hydraulic System
Engine
Model | 50 HP Kubota Diesel Engine (D1803-CR-T) |
Emissions Class | Stage V (EU), Tier 4 Final (USA/CA) |
Glow Plugs | For reliable cold starts |
Battery Cut-Off | For safety and battery preservation |
Drive
Hydrostatic 2-speed | Speed (1): 0 to 20 km/h Speed (2): 0 to 28 km/h |
Type of Steering | Articulated |
4 Wheel Drive | |
Self-locking differential |
Dimensions
Length | 4,030 mm (159″) |
Width | 1,100 mm (43″) |
Height | 2,230 mm (88″) |
Wheelbase | 1,715 mm (67.5″) |
Turning Radius (Internal) | 985 mm (38.8″) |
Turning Radius (External) | 2,590 mm (102″) |
Weights
Unladen Weight |
2,700 kg / 5,952 lbs |
Counterweight |
1,134 kg / 2,500 lbs |
Hydraulic System
Controls – Joystick with 3 functions | – Moves blade up and down – Angles blade left and right – Runs extra attachments |
Gear Pump | 53 L/min (14 GPM) – Powers the blade and attachments smoothly |
High Flow Option | 23 gpm – Enables use of demanding attachments like mowers or augers |


Powerful Kubota Engine
Equipped with a 50 HP Kubota diesel engine, delivering reliability and fuel efficiency for demanding tasks.

Soundproofed Operator Cabin
A quiet, soundproofed cabin with great visibility and ergonomic controls ensures comfort during long workdays.

4WD for Tough Conditions
4WD provides reliable traction for challenging terrains, from muddy fields to rocky sites.

Schäffer Power Transmission
The SPT system ensures smooth, safe operation with overheating and overspeed protection for any job.

HTF (High Traction Force) System
The HTF hydrostatic unit provides thrust and improves efficiency, auto-adjusting speed for max power on hills.

Hydraulic Power
High-performance hydraulic system with quick-attach capabilities for seamless tool changes and enhanced productivity.
