One machine, no matter what the season

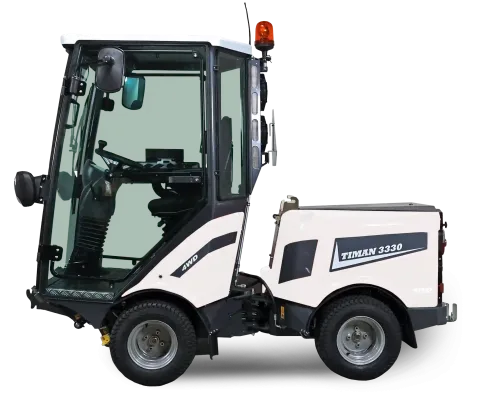

Timan 3330 Tool Carrier
A versatile, compact solution designed for year-round urban maintenance, the Timan 3330 handles diverse tasks such as mowing, sweeping, snow removal, and de-icing, all with quick-change attachments. Its ergonomic comfort cabin ensures operator ease during long workdays, while the high maneuverability and efficient power make it a cost-effective alternative to larger, task-specific vehicles.
33 HP
Kubota Petrol Engine
665 kg / 1,466 lbs
Maximum Payload
28 kph / 17 mph
Top Speed
Articulated
Steering
Main Characteristics
Model | Kubota petrol engine, 3 cylinders, 33 HP |
Displacement | 962 cm3 / 58.7 in3 |
Fuel Tank Capacity | 37 L / 9.8 US Gal |
Max. Speed |
28 kph / 17 mph |
Transmission |
Piston Pumps |
Wheel Motors |
4 x Orbital motors |
Type of Steering |
Articulated Steering |
Net Weight | 1,060 kg / 2,337 lbs |
Movable Weight | 1,185 kg / 2,612 lbs |
Length | 2,700 mm / 106″ |
Width | 1,130 mm / 44″ |
Height | 1,990 mm / 78″ |
Access Height | 500 mm / 20″ |
Turning Radius (Internal) | 530 mm / 21″ |
Turning Radius (External) | 1,670 mm / 66″ |
Capacity Outlet (Front) |
48 l/min (nominal) 180 bar |
Capacity Outlet (Rear) |
48 l/min (nominal) 180 bar |
Oil Outlet (Front) |
1 double-acting with flowing position 150 bar |
Oil Outlet (Rear) |
1 double-acting 150 bar |
Work Hydraulics |
Gear pumps |
Lifting Arm | Flow position and parallel lift standard |
Lifting Capacity | 300 kg (661 lbs) at the quick change 150 kg (331 lbs), 80 cm (31.5″) from quick change |
| |
| |
| |
| |
| |
| |
| |
| |
| |
|
Ease of Use
Easy entry and exit of the cabin. Your body is spared unnecessary twists and movements several times a day.
Accessibility
The control panel is ergonomically and correctly positioned. You can easily operate the machine’s controls sitting in a comfortable position at the same time. To have complete control you must be able to work naturally and comfortably.
Comfort
The cabin is equipped with a comfort seat with a high back and good suspension. The suspension in the machine’s construction and comfort seat will give you the optimal driving experience. Timan 3330 offers large glass windows so you experience good visibility while operating the vehicle.
Noise Level
The Timan 3330 tool carrier gives you the lowest noise level on the market in its class with approx. 68 dB in the cabin for a quiet working environment.
Environmentally friendly
Timan 3330 is part of the solution for a cleaner environment and is designed to be green making it economical to operate.
