One Machine - One Operator - Endless Applications
Compact solution for year-round municipal maintenance

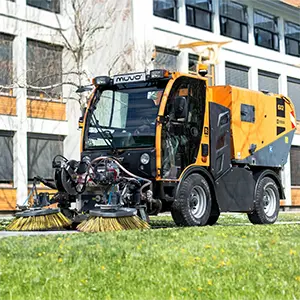

The CX75 is a versatile vehicle designed for urban and sidewalk maintenance, excelling in sanitation, grass mowing, and snow removal. Powered by a diesel engine with Stage V emissions compliance, it delivers reliable performance in compact spaces. Its optimized dimensions ensure smooth operation on narrow pathways, making it a vital tool for municipal and utility services.
75 HP
Deutz Diesel Engine
1,200 kg / 2,646 lbs
Lift Capacity
40 kph / 25 mph
Top Speed
Articulated
Steering
Main Characteristics
Model | 75 HP Deutz Diesel Engine (2.2 L) |
Emissions Class | Stage V (EU), Tier 4 Final (USA/CA) |
Max. Speed |
40 kph / 25 mph |
Outer Turning Radius |
2,990 – 3,190 mm (118 – 126″) |
Type of Steering |
Articulated Steering |
Length | 3,860 mm / 152″ |
Width | 1,200 – 1,610 mm / 47″ – 63″ |
Height | 2,235 mm / 88″, tire dependent |
Access Height | 500 mm / 20″ |
Turning Radius (Internal) | 530 mm / 21″ |
Turning Radius (External) | 1,670 mm / 66″ |
Unladen Weight | 2,200 – 2,500 kg / 4,850 – 5,511 lbs |
Axle Capacity (Front) | 2,500 kg / 5,511 lbs |
Axle Capacity (Rear) | 2,500 kg / 5,511 lbs |
Gross Vehicle Weight | 3,500 – 4,000 kg / 7,716 – 8,818 lbs |
Type | Load-sensing PTO hydraulics (front & rear) |
Flow | Hydraulic flow up to 100 L / 26.4 US Gal |
Operating Pressure | Up to 220 bar / 3,190 psi |
Optional Feature | Front mechanical PTO |
Armrest & Controls
Controls are built into a large and ergonomic armrest, with fingertip paddles for comfortable operation.
Large Operator Cabin
The new cabin is much bigger, and has a more spacious and comfortable feel for operators working long shifts.
On-board Diagnostics
Large in-cabin screen displays the machine’s critical diagnostics for super simple remote troubleshooting.
Lift & Axle Capacity
Lift capacity (1,200 kg / 2,646 lbs) and axle capacity (2,500kg / 5,512 lbs) are great for heavy attachments.
